Drip System Irrigation

We are a leading Manufacturer of Drip Irrigation / Garden Watering Digital Water Timer, Solenoid Valve 1 and Autoatic Drip / Irrigation / Lawn System Controller from Chennai, India.

Request Callback

Get Best Quote

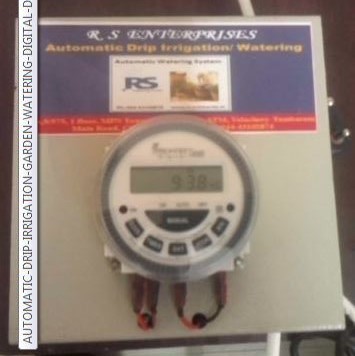

Drip Irrigation / Garden Watering Digital Water Timer

Approx Price: Rs 3,500 / Piece

Automatic drip irrigation / plant watering digital water timer

product description:

1. The user can set the drip irrigation program as per his frequency and requirement

in a day this product can water 17 times (17 frequency timings can be programmed)

3. This product can irrigate the plant, control the sprinkling irrigation, drip irrigation and water ways. One can automate the irrigation.

benefits over other products:

1. Completely digital

2. It requires no batteries as stated by other products

3. It operates through 12 volt dc power supply/ adaopter

4. Led light indication to show the system is in operation

package contents:

1 x automated irrigation system

1 x user manual for program setting

1 x 12 volt power supply adopter

1 x 10 meter drip main tube (user can cut and use them as shown in picture)

1 x 5 nos drip adjusting valves

1 x 5 nos t joints for making branches

1 x 1 no end connection cap.

1 x 1 no diverter union and valve for taking branch line from main water line

Automatic drip irrigation / plant watering digital water timer

product description:

1. The user can set the drip irrigation program as per his frequency and requirement

in a day this product can

...

Yes! I am interested

Request Callback

Ask For Price

Solenoid Valve 1

DRIP IRRIGATION GARDENING 220 VCA AMP SERIES INLINE VALVE 1inchReliability:

- Eccentric diaphragm for smooth closing, less water hammer
- Glass-filled polypropylene body for strength
  (slip by slip model bodies are PVC)
- Reverse flow normally closed design
- Double-filtered pilot flow for maximum reliability
- Balanced-pressure diaphragm for long life
- Buna-N diaphragm with self-cleaning 90-mesh (200 micron) pilot water filter and stainless steel spring
- Three-year trade warranty.

Versatility

- Compact design, 2.54” spin radius for tight installations
- Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream
- Available in multiple fitting types
- External bleed to manually flush system of dirt and debris during installation and system start up
- Internal bleed for spray-free manual operation
- Unique, easy-to-turn, pressure-assisted flow
  control mechanism option available

Ease of Service

- Captive multi-drive screws for ease of access
- Your choice of tools to open valve (nut driver, Phillips head screw driver, slotted head screw driver)
- Four screws for quick access to diaphragm
- Trouble-free service with few parts
- Diaphragm locating post for positive installation
- Operating Range

          Pressure: 15 to 150 PSI (1,0 to 10,3 bar)
          Flow: 0.2 to 30 GPM (0,05 to 6,82 m3/h; 0,01 to 1,89 l/s); for flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream
          Operating Temperatures:
          Water temperature up to 110° F (43° C); ambient temperature up to 125° F (52° C)

  Electrical Specifications

       220VAC 50/60 Hz (cycles/sec.) solenoid
          Inrush current: 0.290 A at 60 Hz
          Holding current: 0.091 A at 60 Hz
          Coil resistance: 70-85 Ohms
          (40° F - 110° F)

  Dimensions

          Height: 5" (13)
-       Width:4" (12 cm)

  AMP and HVF Valve Pressure Loss
  Flow
  (gpm)     1" AMP
  (psi)     Male x Barb
  (psi)
  1     1.57     1.73
  3     2.07     2.06
  5     2.38     2.25
  10     3.33     2.80
  20     4.59     4.45
  30     6.14     7.85
  40     8.23     13.68

  AMP and AMP Valve Pressure Loss (METRIC)
  Flow
  (m3/h)     Flow
  (l/s)     1" AMP
  (bar)     Male x Barb
  (bar)
  0,25     0,06     0,11     0,12
  0,75     0,21     0,14     0,14
  1,00     0,28     0,16     0,16
  2,00     0,56     0,23     0,19
  5,00     1,39     0,32     0,31
  7,50     2,08     0,42     0,54
  9,10     2,52     0,57     0,94

DRIP IRRIGATION GARDENING 220 VCA AMP SERIES INLINE VALVE 1inchReliability:

- Eccentric diaphragm for smooth closing, less water hammer
- Glass-filled polypropylene body for strength
  (slip by slip
  ...

  Read more

Yes! I am interested

Request Callback

Get Best Quote

Autoatic Drip / Irrigation / Lawn System Controller

Approx Price: Rs 6,000 / Piece

Automatic drip irrigation / plant watering digital water timer / for all water control application

product description:

1. The user can set the drip irrigation program as per his frequency and requirement

in a day this product can water 17 times (17 frequency timings can be programmed)

3. This product can irrigate the plant, control the sprinkling irrigation, drip irrigation and water ways. One can automate the irrigation.

benefits over other products:

1. Completely digital

2. It requires no batteries as stated by other products

3. It operates through 12 volt dc power supply/ adaopter

4. Led light indication to show the system is in operation

Automatic drip irrigation / plant watering digital water timer / for all water control application

product description:

1. The user can set the drip irrigation program as per his frequency and requirement

in a day this

...

Yes! I am interested
