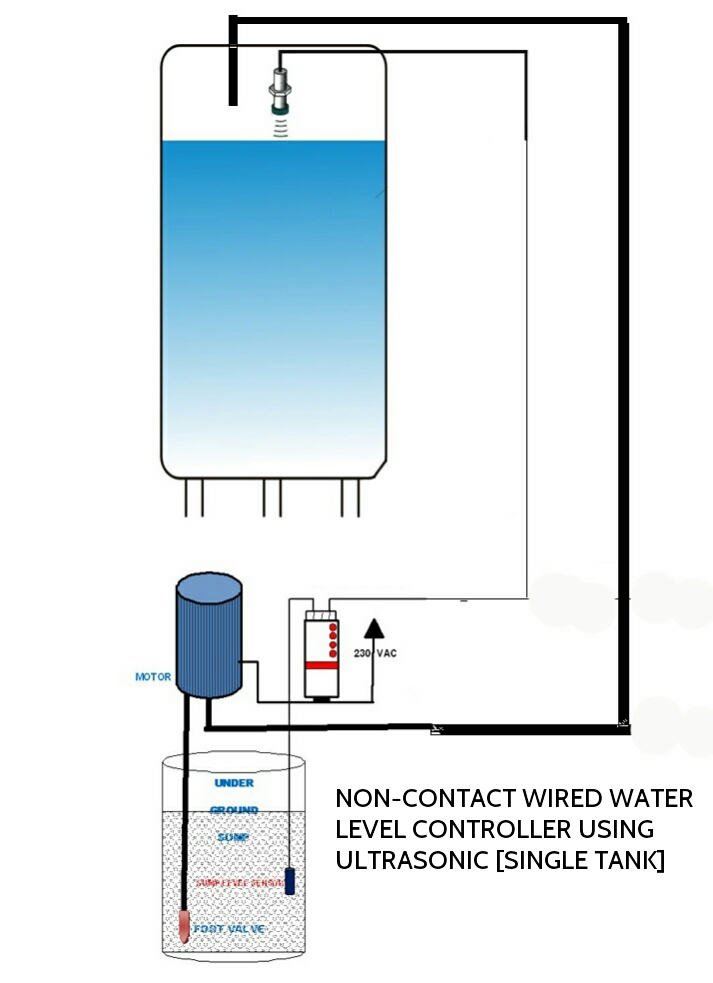

    Non-contact wired water level controller using single tank


    The offered Automatic Water Level Controller is manufactured under the visionary observation of our skilled professionals, using exceptional grade components in line with industry standards. Fully automatic, provided controller does not need an operator to perform its operations. Furthermore, proposed controller stops the motor when tank becomes full and restarts it when water level goes down in the water tank. With rich industry experience and knowledge, we are offering this Automatic Water Level Controller in plethora of designs and other specifications at nominal rate.

    Features

    1.Optimum efficiency

    2.Compact design

    3.Less power consumption

    4.Longer functional life

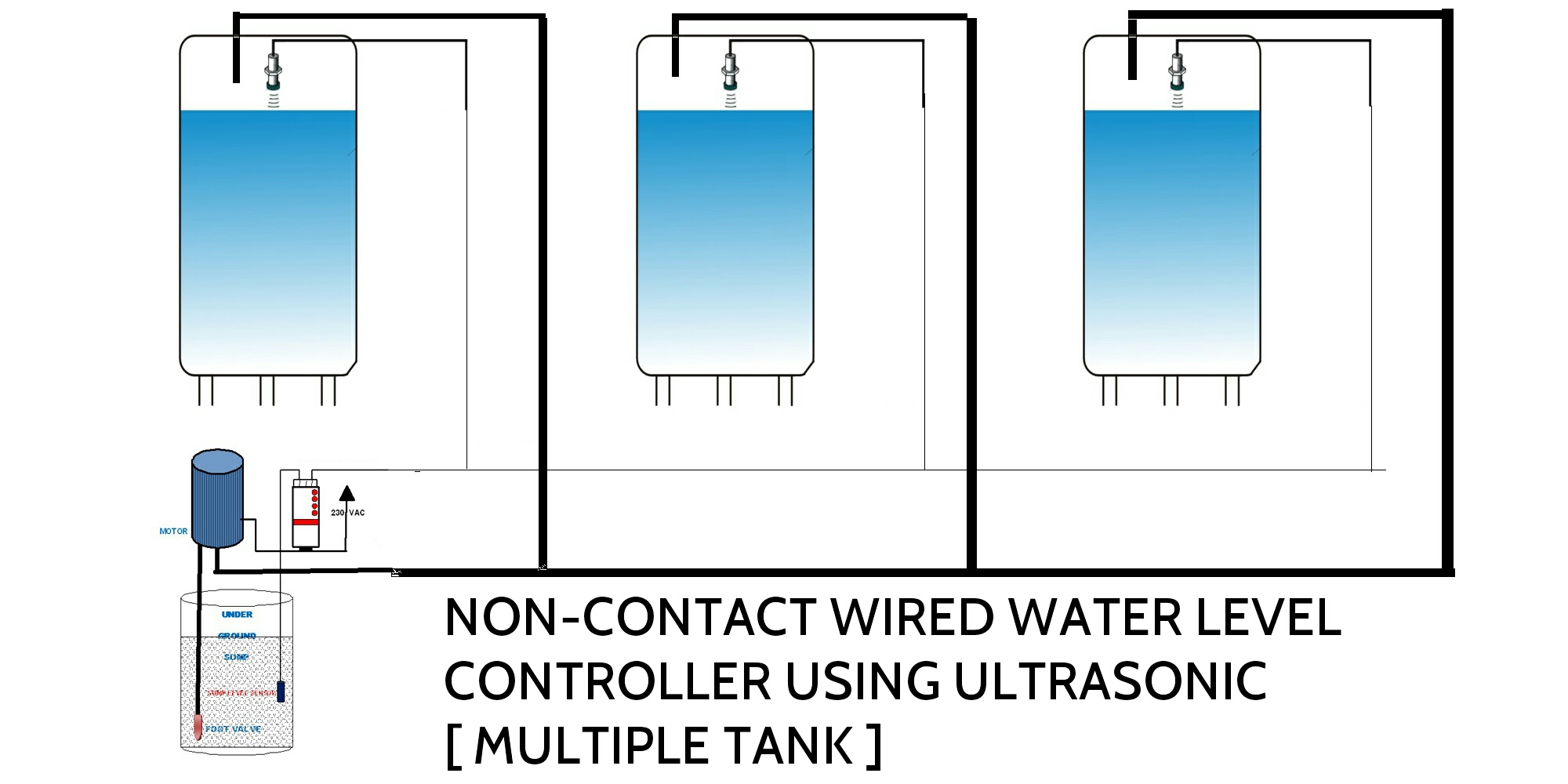

    Non-contact wired water level controller using multiple tank


    1.Reduced wiring complications

    2.Operates on pressure switch.

    3.No need of separate starter.

    4.Cyclic on-off timer.

    5.Easy to install (Only input supply wires and motor power supply wires to be connected).

    6.Minimum number of parts and hence less chances of failure.

    7.All the parts are plug-in type and hence very easy to maintain.

    8.Inbuilt alternating action for two pumps.

    9.Digital display of motor current, set parameters and faults.

    10.All the system parameters are code-locked.

    11.Following protections are inbuilt to the system.

    1.Over Current

    2.Under Current

    3.Dry run

    4.Lock rotor

    5.Single phasing preventer in case of three phase systems

    12.Also available for Single pump systems controlling multiple overhead tanks









    Non-contact wireless liquid controller using single tank using ultrasonic


    The WL705 Ultrasonic liquid Level controller uses the latest ultrasonic distance measuring technology for accurate non-contact water level monitoring. The ultrasonic water level sensors contain a rugged transducer in a stainless steel sealed housing for long life and provides an industry standard 4-20 mA output. There are three ultrasonic water level sensor ranges available including 3 ft, 12 ft, and 48 ft to meet a wide variety of applications. The unique 3 ft range ultrasonic water level sensor is ideal for measuring flow in small flumes and weirs. The 12 ft and 48 ft ultrasonic water level sensor ranges are best for measuring river, lake and tank levels and for measuring open channel flow in larger flumes. Ultrasonic water level sensor installation is simple and requires no programming or calibration. No maintenance is required for the ultrasonic water level sensors.

    Features

    1.Long range,short dead band

    2.Unaffected by optical factors like color and transparency

    3.4-20ma Transmitter

    4.Durable sealed housing for wet or dirty applications

    5.For monitoring water level in tanks and open channel

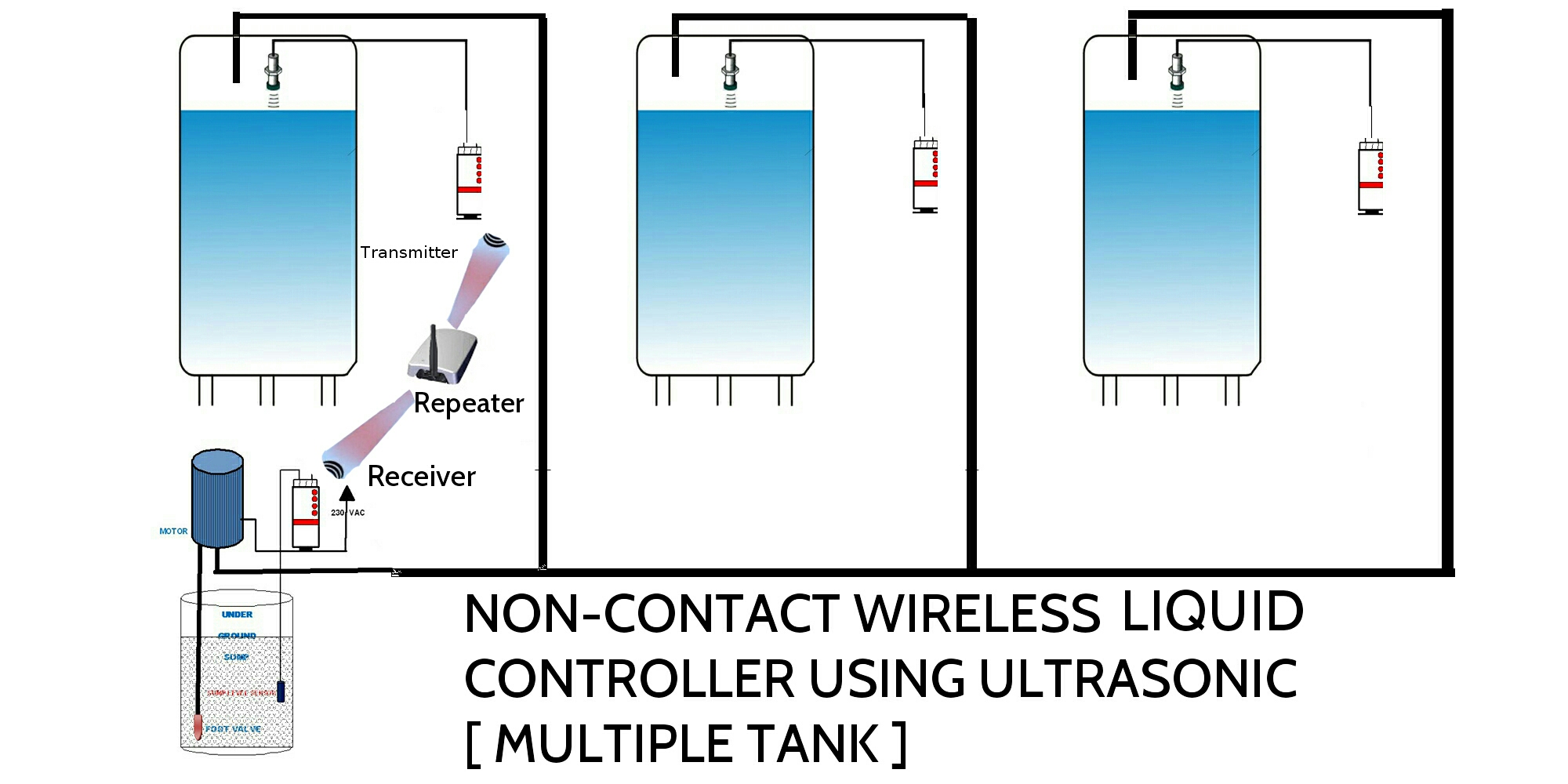

    Non-contact wireless liquid controller using multiple tank


    The WL705 Ultrasonic Water Level Sensor uses the latest ultrasonic distance measuring technology for accurate non-contact multiple tank water level monitoring. The ultrasonic water level sensors contain a rugged transducer in a stainless steel sealed housing for long life and provides an industry standard 4-20mA output. There are three ultrasonic water level sensor ranges available including 3 ft, 12 ft, and 48 ft to meet a wide variety of applications. The unique 3 ft range ultrasonic water level sensor is ideal for measuring flow in small flumes and weirs. The 12 ft and 48 ft ultrasonic water level sensor ranges are best for measuring river, lake and tank levels and for measuring open channel flow in larger flumes. Ultrasonic water level sensor installation is simple and requires no programming or calibration. No maintenance is required for the ultrasonic water level sensors.

















    Ajlon Technologies Ltd.
    No:5/575,1st Floor, MPN Towers, Velachery-Tambaram Main Road, Medavakkam,Chenai-600100, India.
